Product Details
Place of Origin: China
Brand Name: PEONY
Certification: ISO
Model Number: PP-40
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD36800-85000/SET FOB SHANGHAI
Packaging Details: Standard export packings
Delivery Time: 60-75 days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets/month
Application: |
Rock Salt, Sea Salt Dewatering |
Suitable For: |
Large Capacity, Solid 40-60% The Best |
Operation: |
Automatic Continuous |
Technique: |
Sulzer Echer Wyss |
MOC: |
SS316L, DSS |
Capacity: |
2.5-3t/h Output |
Control Box: |
With |
Product Name: |
Continuous Pusher Centrifuge For Edible Salt Dewatering |
Application: |
Rock Salt, Sea Salt Dewatering |
Suitable For: |
Large Capacity, Solid 40-60% The Best |
Operation: |
Automatic Continuous |
Technique: |
Sulzer Echer Wyss |
MOC: |
SS316L, DSS |
Capacity: |
2.5-3t/h Output |
Control Box: |
With |
Product Name: |
Continuous Pusher Centrifuge For Edible Salt Dewatering |

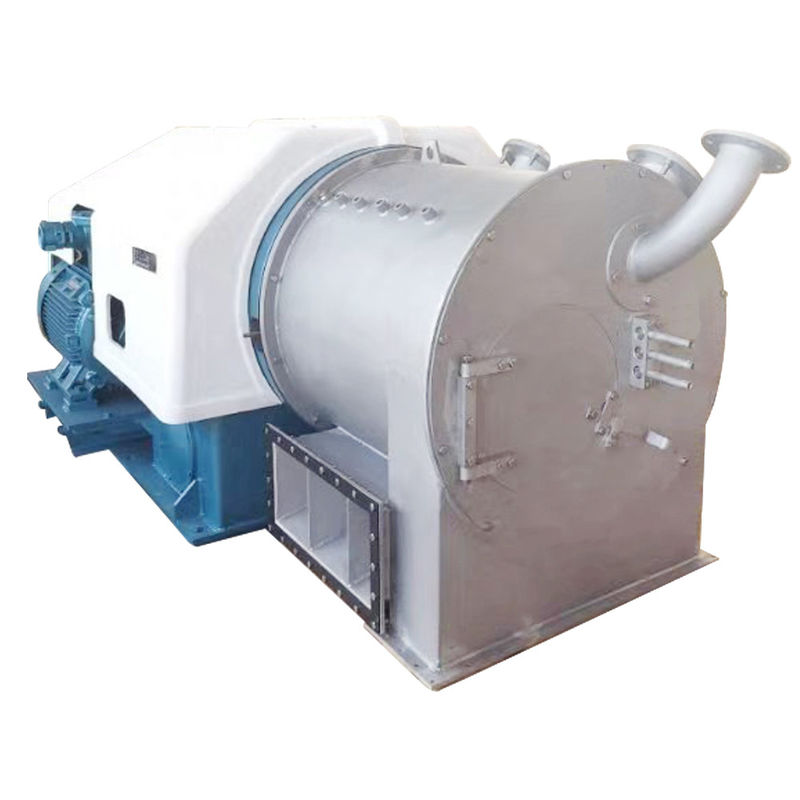

Continuous Pusher Centrifuge For Edible Salt Dewatering
Description:
The Model PP-40 Two-stage Pusher Centrifuge is a type of centrifuge with a perforated basket that operates continuously and effectively. The mixture to be separated is fed through the feeding pipe and the distributor, and it is distributed evenly into the first-stage basket. The centrifugal force acts on most of the mother liquor in the feed, which is then separated through the sieves into the liquor-collecting casing, where it is discharged from the machine.
The first-stage basket rotates and reciprocates, pushing the formed product cake into the second-stage basket. The cake is subjected to more centrifugal force, which provides sufficient retardation in the centrifuge and guarantees the desired humidity of the cake. Afterward, the cake is continuously discharged out of the basket. If high purity is required for the solid product, effective washing can be carried out in the centrifuge.
If necessary, the washing agent and the mother-liquor can be discharged separately.
Specification:
|
Equipment |
2-stage Pusher Centrifuge |
|||||
|
Spec. |
PP-40 |
Qty |
set |
|||
|
Technical Parameters |
||||||
|
1 |
Basket diameter |
290/360 mm |
||||
|
2 |
Basket Rotate Speed (Max) |
2500rpm |
||||
|
3 |
Stroke of Pusher Mechanism |
40-80 times/min |
||||
|
4 |
First, second stage mesh aperture (as per the material) |
mm, mm |
||||
|
5 |
Separation Factor |
586-728 |
||||
|
6 |
Main motor
|
Spec/Power |
11-15 KW |
|||
|
Installation type |
Horizontal |
|||||
|
Protection class |
IP54/F1 |
|||||
|
Power supply |
3-phase AC 380V/50Hz |
|||||
|
7 |
Oil pump motor
|
Spec/Power |
5.5-7.5 KW |
|||
|
Installation type |
Horizontal |
|||||
|
Protection class |
IP54/F1 |
|||||
|
Power supply |
3-phase AC 380V/50Hz |
|||||
|
8 |
Oil pump |
Spec |
NB4C100F |
|||
|
Outflow |
100ml/turn |
|||||
|
Max pressure |
2.5 Mpa |
|||||
|
9 |
Dimension |
2346mm × 1090mm × 1006mm |
||||
|
10 |
Weight |
2600kg |
||||
|
11 |
Shell type |
Open |
||||
|
12 |
Output |
3 T/h |
||||
|
13 |
Moisture content after separation |
≤2.5-3% / 4% |
||||
|
14 |
Object processed |
Mineral salt / Sea salt |
||||
