Product Details
Place of Origin: China
Brand Name: Peony
Certification: ISO,CE
Model Number: PPC/PPCS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Please contact us
Packaging Details: Standard export packings
Delivery Time: 60 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 sets/month
Collocation 1: |
Hydralic System |
Collocation 2: |
Screw Conveyor |
Shape: |
Horizontal |
Keywords: |
Continuous Peeler Centrifuge |
Base Concrete: |
Needed |
Discharge Type: |
Spiral Scraper Discharge |
PLC System: |
As Option |
MOC: |
SS304,SS316 |
Operation: |
Continuous |
Special Adoption: |
Dewatering Centrifuge |
Voltage: |
Customized |
Warranty: |
1 Year |
Type: |
Separating Plant |
Application: |
Food, Chemical Industry |
Discharge: |
Automatic Discharge |
Collocation 1: |
Hydralic System |
Collocation 2: |
Screw Conveyor |
Shape: |
Horizontal |
Keywords: |
Continuous Peeler Centrifuge |
Base Concrete: |
Needed |
Discharge Type: |
Spiral Scraper Discharge |
PLC System: |
As Option |
MOC: |
SS304,SS316 |
Operation: |
Continuous |
Special Adoption: |
Dewatering Centrifuge |
Voltage: |
Customized |
Warranty: |
1 Year |
Type: |
Separating Plant |
Application: |
Food, Chemical Industry |
Discharge: |
Automatic Discharge |

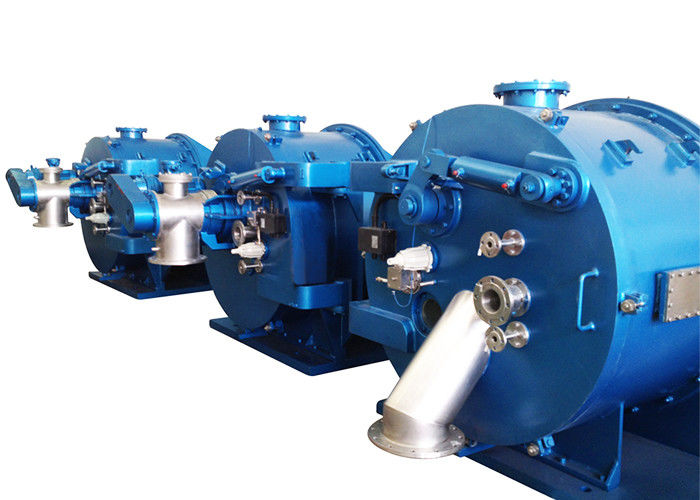

Large Capacity Horizontal Scraper Centrifuge Continuous Peeler Centrifuge
Description
PPC/PPCS series automatic centrifuge is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.
The machine is controlled by PLC. It regulates speed by frequency converter. Braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection, speed inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulateve work (including feeding, dehydration, washing, discharging, ect). Also manual operation mode is availalbe which can be changed over from full automation mode by customer's will.
Technical parameters
| Model | Drum | G-force | Power(kw) | Weight(kg) | |||
|
Diameter (mm) |
Volume (L) |
Capacity (kg) |
Speed (r/min) |
||||
| PPC-135 | 800 | 95 | 135 | 1600 | 1150 | 30 | 5000 |
| PPCS-135 | 800 | 95 | 135 | 1600 | 1150 | 37 | 5500 |
| PPC-135 GMP | 800 | 95 | 135 | 1600 | 1150 | 37 | 6500 |
| PPC-312 | 1000 | 208 | 312 | 1350 | 1020 | 45 | 6500 |
| PPCS-312 | 1000 | 208 | 312 | 1350 | 1020 | 55 | 7000 |
| PPC-288 | 1200 | 230 | 288 | 1200 | 968 | 45 | 8000 |
| PPC-375 | 1250 | 250 | 375 | 1200 | 1008 | 45 | 9000 |
| PPCS-555 | 1250 | 370 | 555 | 1200 | 1008 | 75 | 12000 |
| PPC-960 | 1600 | 650 | 960 | 850 | 650 | 75 | 13500 |
| PPCS-960 | 1600 | 650 | 960 | 850 | 650 | 90 |
15000 |
Applications
Continuous Peeler Centrifuge is the filter equipment characterized with continuous running, scraper discharging and intermittent operation, applicable to the separation of the suspension liquid containing medium-sized granules or fine granules (0.01mm ~ 5mm).
It can also be used for the separating of the suspension liquid containing short fibers (with the fiber length less than 4mm), with the concentration of the suspension liquid being 10%~60%. With hydraulic and electric joint control mode adopted, this series of centrifuges are capable of high degree of automization, with such working processes as feeding, dehydrating, washing, discharging, etc. being operated manually or by means of PLC for full automatic control.
The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical, light industry, food, pharmacy, etc. for the separating of over 100 kinds of substances including ammonia sulphate, sodium sulphate, anthracene, boric acid, starch, pesticide, synthetic resin, sodium cyanide, potassium chloride, sodium bicarbonate, etc.
